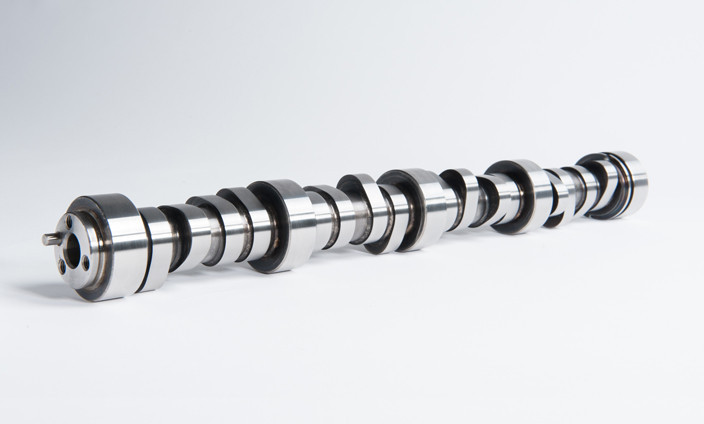

CS 224/240 LS Supercharger Camshaft (224/240-116+5) for Centrifugal

Product Description Grind # XA224/355-XA240/350-116+5 Street Performance Duration at .050: 224/240 116 Lobe Center Angle with a 111 Degree Intake Centerline Lift with 1.7 Rocker Arm Ratio: .604″/.595″ Recommended Displacement: 4.8-6.2 Liter Engines Recommended Compression Ratio: 8.5:1-9.5:1 Recommended Headers: 1 3/4″ – 1 7/8″ Recommended Stall Converter: 2500 – 3500 RPM Recommended Rear Axle Ratio: Stock – 4.10 The CS 224/240 centrifugal supercharger LS camshaft is designed for moderate performance applications in vehicles using 4.8-6.2 liter LS engines equipped with centrifugal style superchargers. The CS 224/240 Supercharger Camshaft will have a moderate performance idle and improved power in the mid-range and upper RPM. This camshaft will perform best in a vehicle with headers, free flowing performance exhaust and increased stall speed torque converter. Valve spring and pushrod upgrade are required. Our Supercharger series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores. You can read more about our cam cores here > Cam Motion’s cam cores Recommended Accessories: •Cam Motion .625: Lift Beehive Valve Springs or our .660″ lift Dual Valve Spring Kit •Cam Motion 5/16″ .080″ Wall Hardened Chromoly Pushrods
