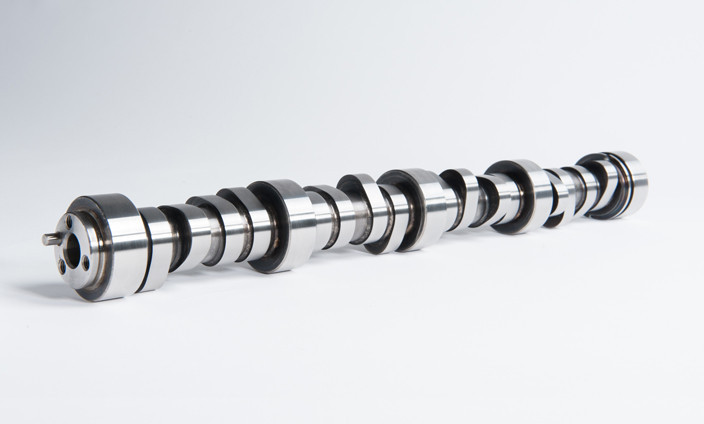

JunkYard Dog Nitrous Camshaft for SBE (233/254 -115+5), Rectangle Port, Single Plane

Product Description Grind # XA233/365-XA254/355-15+5 Aggressive Street / Street-Strip Duration at .050: 233/254 115 Lobe Center Angle with a 110 Intake Centerline Lift with 1.7 Rocker Arm Ratio: .621″/.604″ Recommended Displacement: 5.7-6.2 Liter Engines Cylinder Heads: rectangle Port Recommended Compression Ratio: 9.4-11.5:1 Recommended Headers: 1 3/4″ – 1 7/8″ Recommended Stall Converter: 3000-4500 Recommended Rear Axle Ratio: 3.73-4.56 *This camshaft is specifically designed for use with single plane intake manifolds such as Victor, Hi-Ram, Mid-Ram and GMPP intakes. The Junkyard Dog Nitrous Camshaft for SBE “Single Plane” Rectangle Port cam is an aggressive and powerful camshaft created for drag racing where a large amount of nitrous is being used on a stock bottom end engine using a carburetor or single plane intake manifold and rectangle port heads. This camshaft is an excellent choice for enthusiasts who want to push their stock short block to its limits. This camshaft is designed to get maximum performance out of a single plane equipped 5.7 to 6.2 liter stock short block while still maintaining acceptable valve clearance without fly-cutting the pistons in rectangle port headed engines. However, it is still the owner’s/engine builder’s responsibility to verify sufficient clearance during installation. Also, milling of the heads, installing a thinner head gasket or installing larger diameter valves will reduce your piston to valve clearance. The Junkyard Dog Single Plane Camshaft has a very lopey idle. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust, increased stall speed torque converter and increased rear axle ratios. The Junkyard Dog Nitrous Camshaft for SBE cam is designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores. You can read more about our cam cores here > Cam Motion’s cam cores Recommended Accessories: •Cam Motion .660″ Lift Dual Valve Spring Kit •Cam Motion 5/16″ .080″ Wall Hardened Chromoly Pushrods
