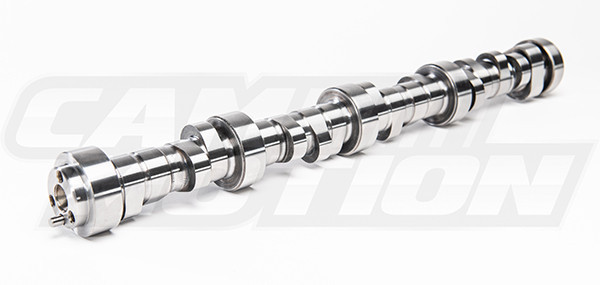

Gen 5 LT Turbo 224/230 Camshaft VVT Delete (3-Bolt) (224/230-115+5)

Product Description Grind Number: XA224/345-XA230/340-15+5 Hydraulic Roller Camshaft Performance Duration at .050″: 224/230 115 Lobe Center Angle with a 110 Intake Centerline Lift with 1.8 Rocker Arm Ratio: .621″/.612″ Recommended Displacement: 6.2 Liter Engines Cylinder Heads: Gen 5 LT Recommended Compression Ratio: 8.5-10.5:1 Recommended Headers: Stock Manifolds – Turbo headers Recommended Stall Converter: Stock Torque Converter – 2800 Recommended Rear Axle Ratio: 2.85-3.90 NOTE: Cam Motion Gen 5 LT VVT Delete Camshafts are 3-bolt camshafts that utilize a Gen 4 LS 3-bolt upper timing gear along with either the LME VVT Delete front timing cover or the Katech VVT Delete front timing cover. NOTE: The Cam Motion 3 bolt LT camshaft has a .306″ lift fuel pump lobe. It is the installers responsibility to make sure that the fuel pump is operating within its stroke range. Lash caps or pump shims may be necessary to achieve proper operation and avoid pump damage. The Gen 5 LT Turbo 224/230 Camshaft is designed for performance in cars using 6.2 liter LT engines. The Gen 5 LT Turbo 224/230 Cam will have a mild performance idle and strong midrange power. This camshaft is designed to be used in mild or even completely stock turbo equipped vehicles but vehicles equipped with headers, high flow exhaust, increased stall speed torque converter, high flow intake systems and increased rear axle ratios will enjoy additional performance benefits. If you are looking for a performance turbo cam that you can daily drive, this camshaft is a great choice. The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150 steel alloy camshaft cores. Required Accessories: Cam Motion .660″ lift Dual Valve Spring Kit Cam Motion 5/16″ .080″ Wall Hardened Chromoly Pushrods 4x Timing Set Either BTC-002 OR BTC-001
