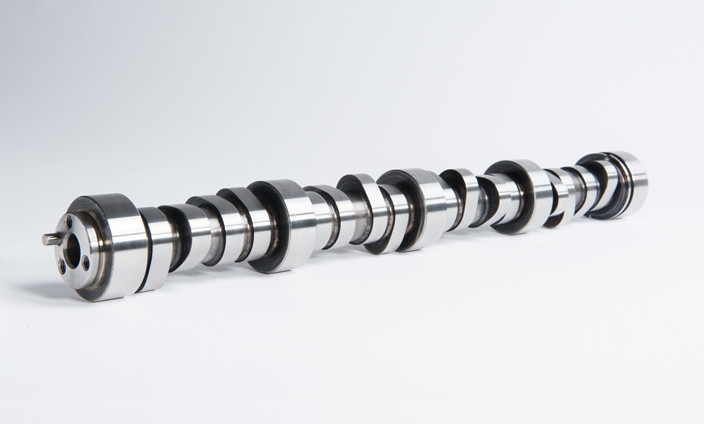

CS 212/228 LS Supercharger Camshaft (212/228-115+6) for Centrifugal

Product Description Grind # XA212/325-XA228/325-15+6 Mild Street Performance, trucks & towing Duration at .050: 212/228 115 Lobe Center Angle with a 109 Degree Intake Centerline Lift with 1.7 Rocker Arm Ratio: .553″/.553″ Recommended Displacement: 4.8-6.0 Liter Engines Recommended Compression Ratio: 8.0:1-9.5:1 Recommended Headers: 1 3/4″ – 1 7/8″ Recommended Stall Converter: Stock – 2500 RPM Recommended Rear Axle Ratio: Stock – 3.73 The CS 212/228 centrifugal supercharger LS camshaft is designed for mild performance, trucks and towing applications in vehicles using 4.8-6.0 liter LS engines equipped with centrifugal style superchargers. The CS 212/228 Supercharger Camshaft will have a slight performance idle and improved power throughout the RPM range with emphasis on mid-range power and torque. This camshaft can be used in a completely stock vehicle with just a valve spring and pushrod upgrade. Additional performance gains can be appreciated when used with headers, an increased stall speed torque converter, free flowing exhaust and intake systems. Our Supercharger series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores. You can read more about our cam cores here > Cam Motion’s cam cores Recommended Accessories: •Cam Motion .625: Lift Beehive Valve Springs or our .660″ lift Dual Valve Spring Kit •Cam Motion 5/16″ .080″ Wall Hardened Chromoly Pushrods
