Vertical Link, Delrin/Spherical BMR Suspension for Mustang

Product Overview

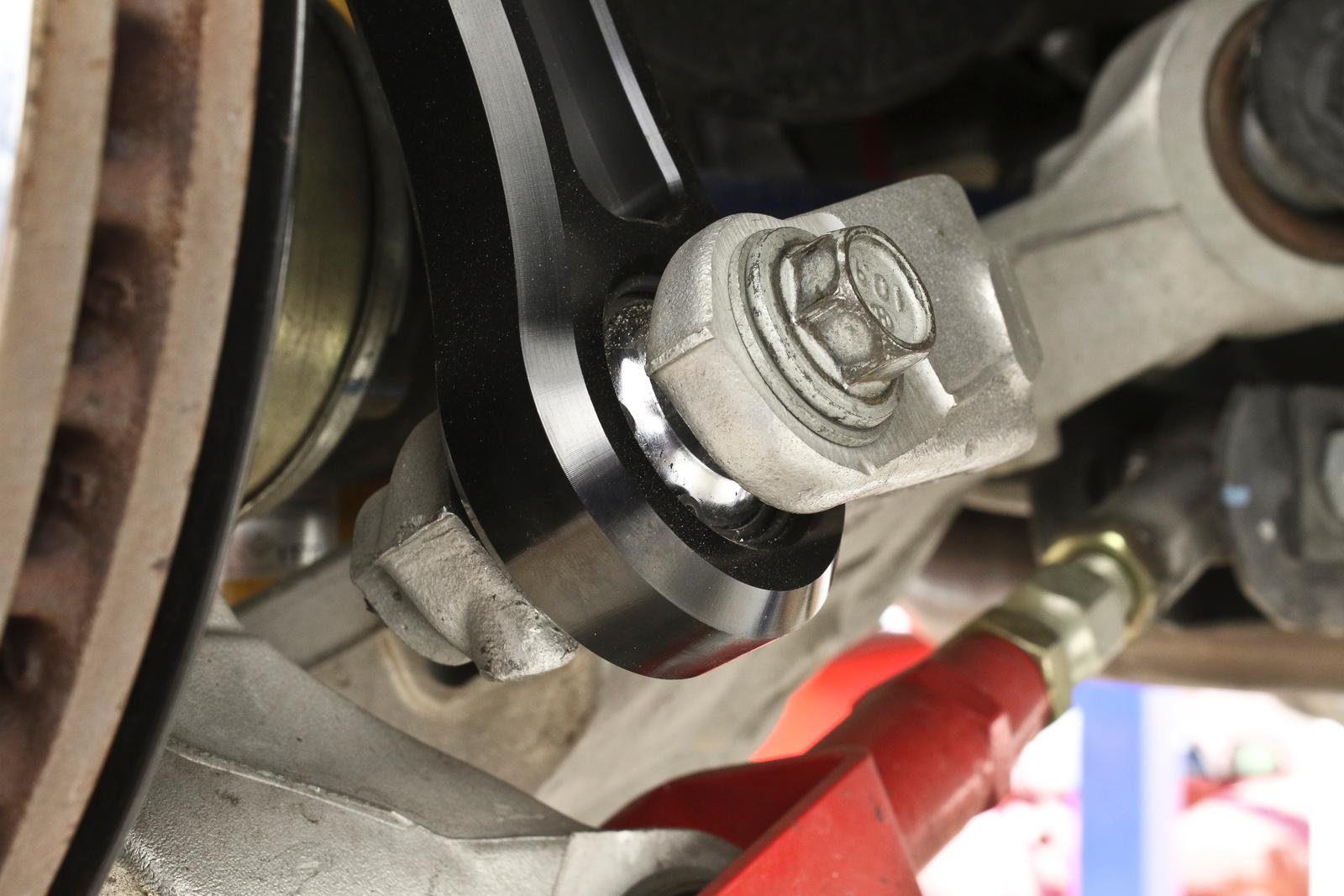

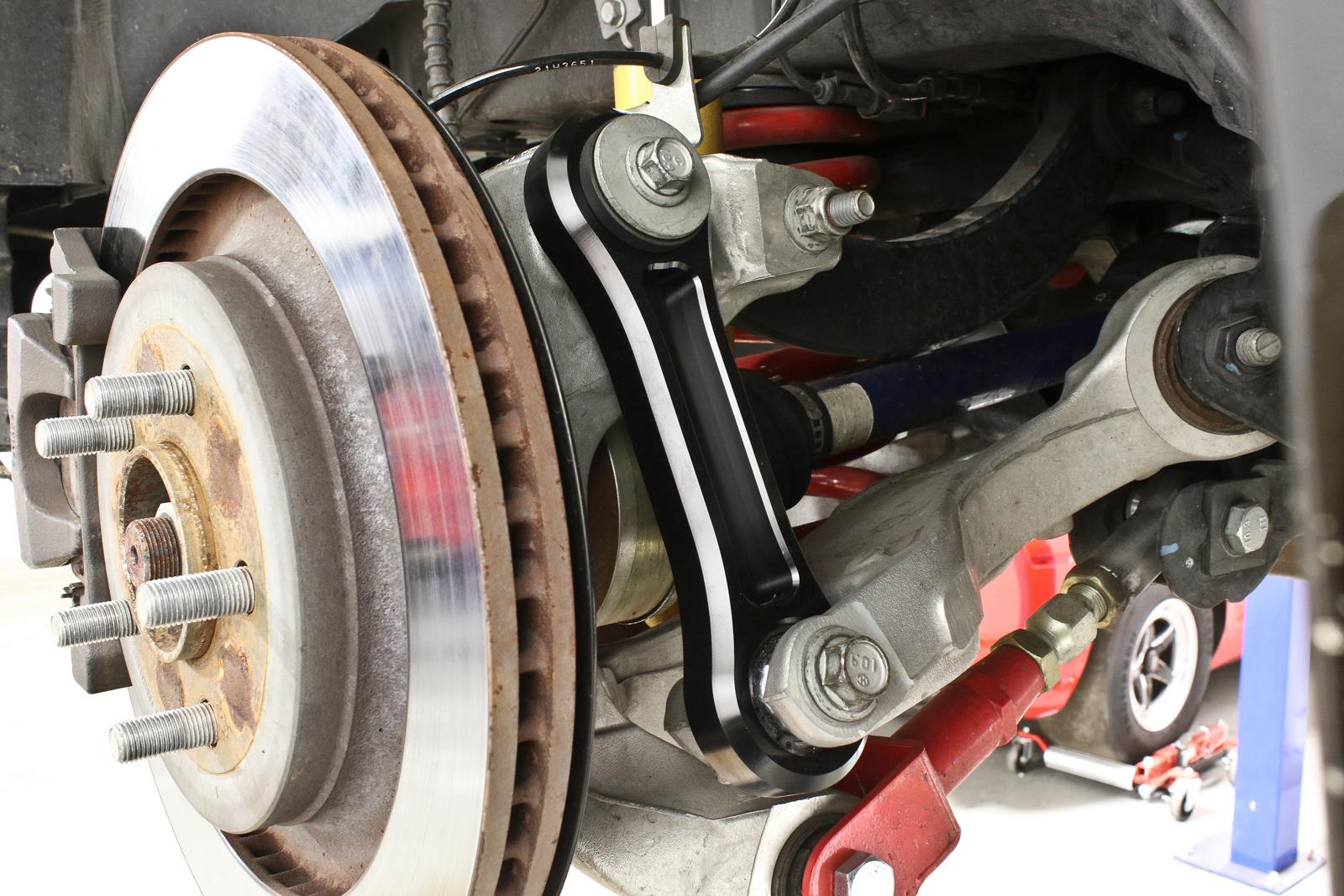

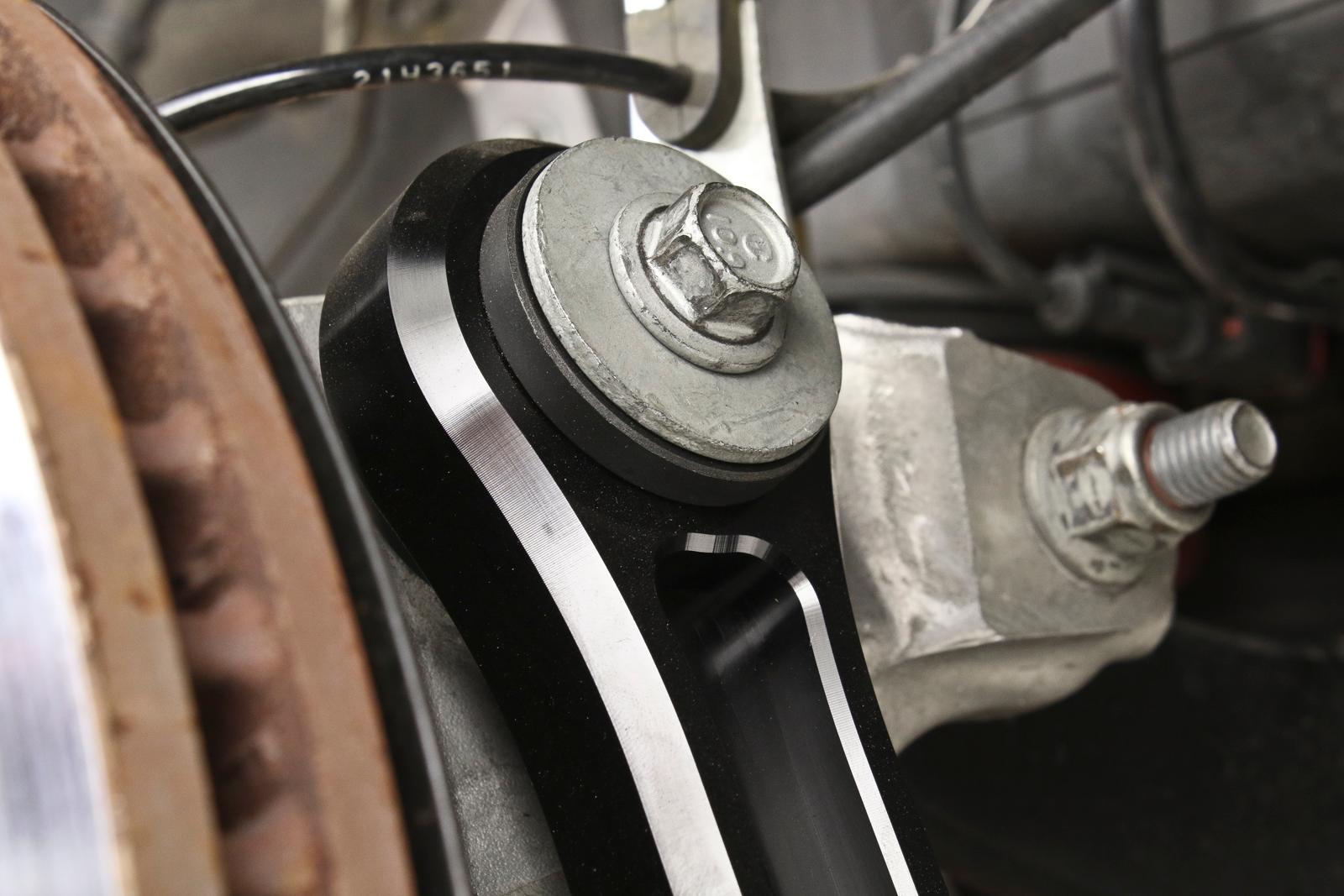

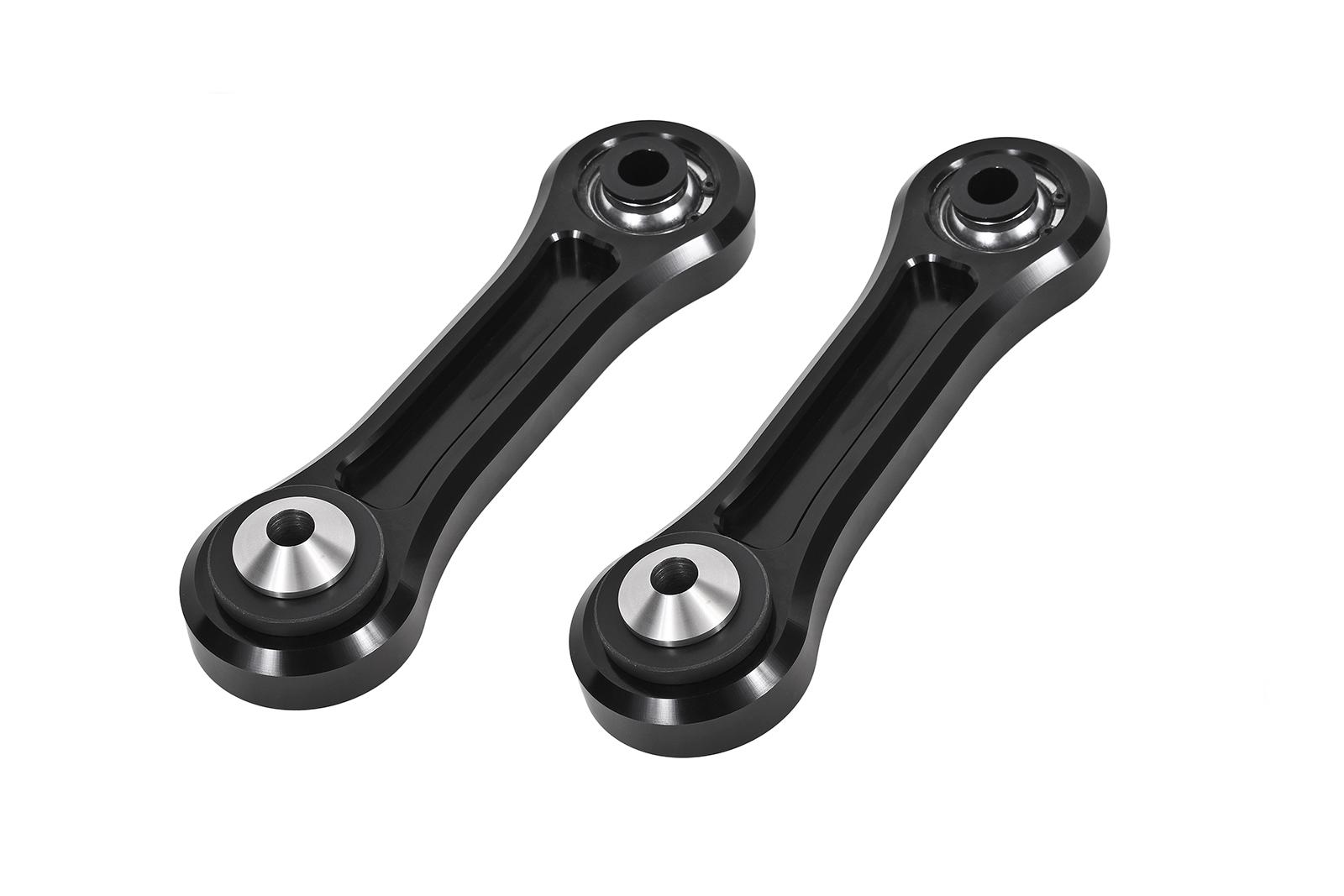

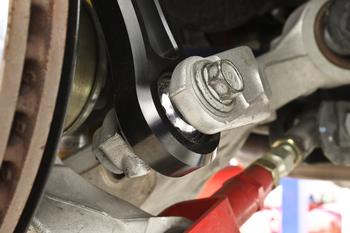

Launch harder, reduce wheel hop, and corner more consistently in your S550 and S650 Mustang with a set of Vertical Links from BMR Suspension! Stock stamped steel vertical links that use soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMR’s Spherical/Delrin Vertical Links (TCA046) are manufactured from 6061-T6 billet aluminum and are designed for street performance, drag racing, and handling applications. When performance is a must, rely on BMR Suspension!

• Fits 2015-2023 S550 Mustangs (not including GT500s)
• Fits 2024-Current S650 Mustangs
• Machined from 6061-T6 billet aluminum
• Heavy-duty spherical bearings
• CNC-machined Delrin bushings
• Eliminates vertical link flex and bushing deflection
• Prevents wheel alignment changes from vertical link flex
• Offers bind-free articulation to greatly improve handling characteristics
• Available black anodized for a durable finish
• 1-2 hour installation time
• Proudly designed in the USA!
• Proudly made in the USA!

Please note:
• BMR’s TCA046 is not compatible with S550 Mustang GT500s.
• BMR highly recommends specific supporting mods to reduce rear toe change when installing our TCA046 kit. Installing Delrin-equipped vertical links without addressing the rear lower control arm front bushing and the toe knuckle bushing can increase the chances of excessive NVH and stress on parts. Please call our tech department at (813)-986-9302 for more information.
