طقم ناقل حركة ومحول عزم Sipple’s Speed & Performance HP95 and Torque Converter Combo (TRX, HC Durango, TrackHawk)

نبذة عن المنتج

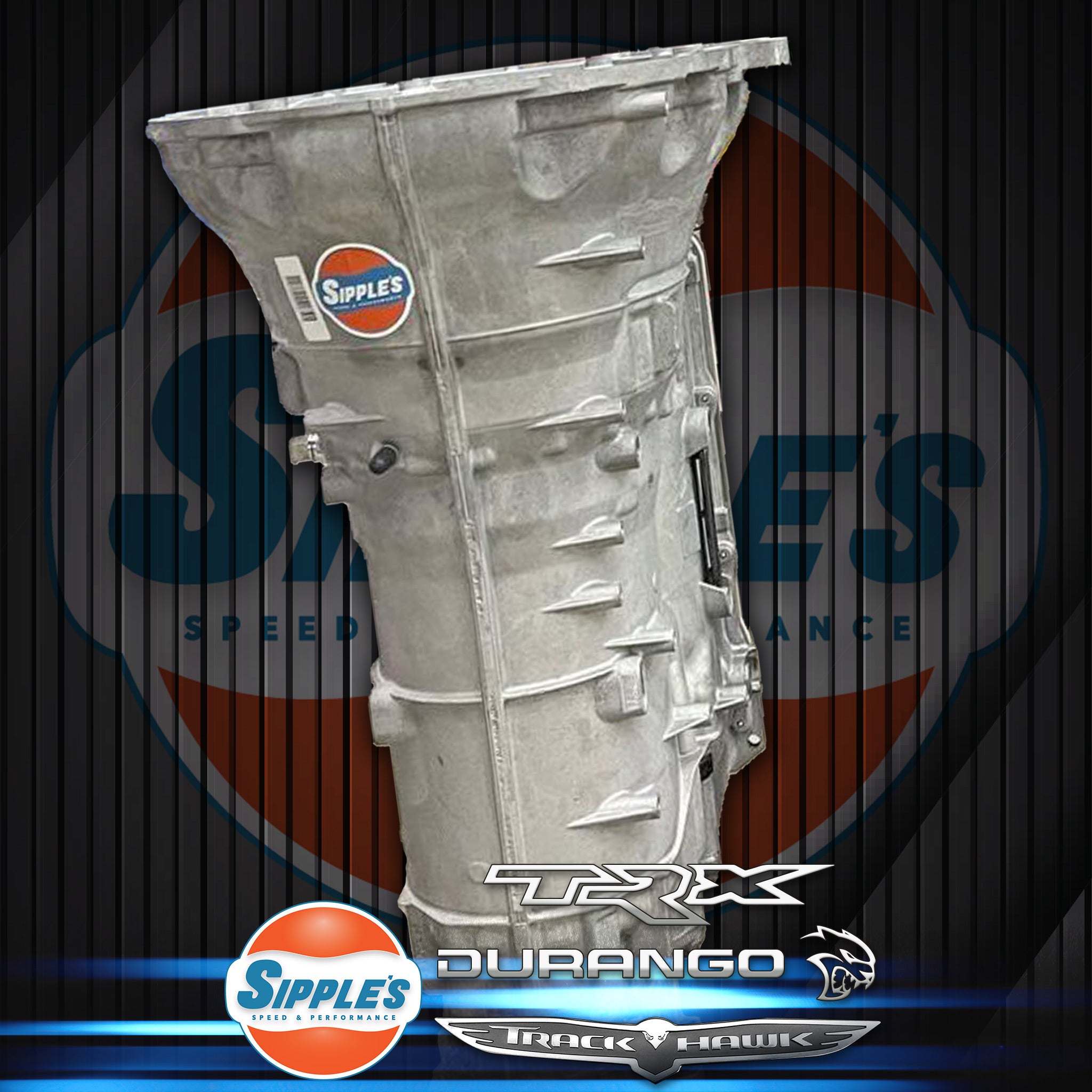

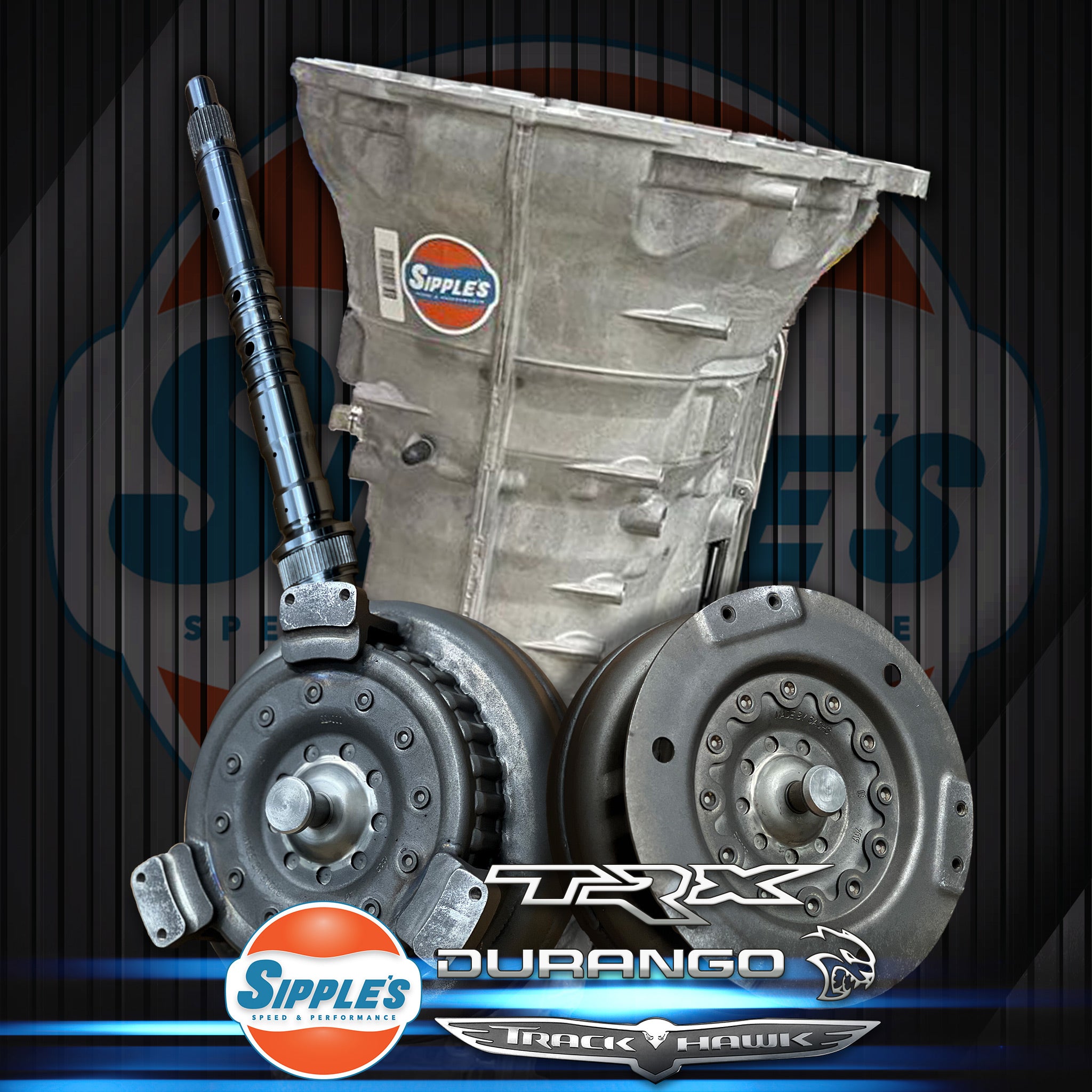

Sipple Speed and Performance Max Effort HP95 Transmission and Torque Converter Combo for
TRX, HC Durango, TrackHawk.
We only offer one level of transmission the "Max Effort". These are the race proven, fully built transmissions. Billet E Drums,
performance steels and frictions
all assembled to SSP's precise specifications.
We don't just throw a bunch of clutches in and hope for the best. There is a reason Sipple's Max Effort Transmissions lead the lists online, and the winner's circle at the track.
HP95
(TRX, HC Durango, TrackHawk)
Description
MAX EFFORT HP95 Build Service
All tolerances and specs set to MAX EFFORT standards.
Disassemble unit
Install revised clutch modules
with added steels & frictions
Install billet E Drum
Blueprint pump
Recalibrate the valve body for high HP application
Bench test unit and solenoids to ensure operation
Fill the unit with approved ZF fluid
Prepare for plug and play installation
Specs
Billet E-drum
Extra capacity performance frictions/steels
(A,C,E,D)
Upgraded stator bushing
Upgraded rear bearing
New seals & gaskets
New pan filter
New pump & chain
Valve body recalibration
Build new separator plate
New pump bolts
Proprietary modifications to input/output shafts
New output shaft nut

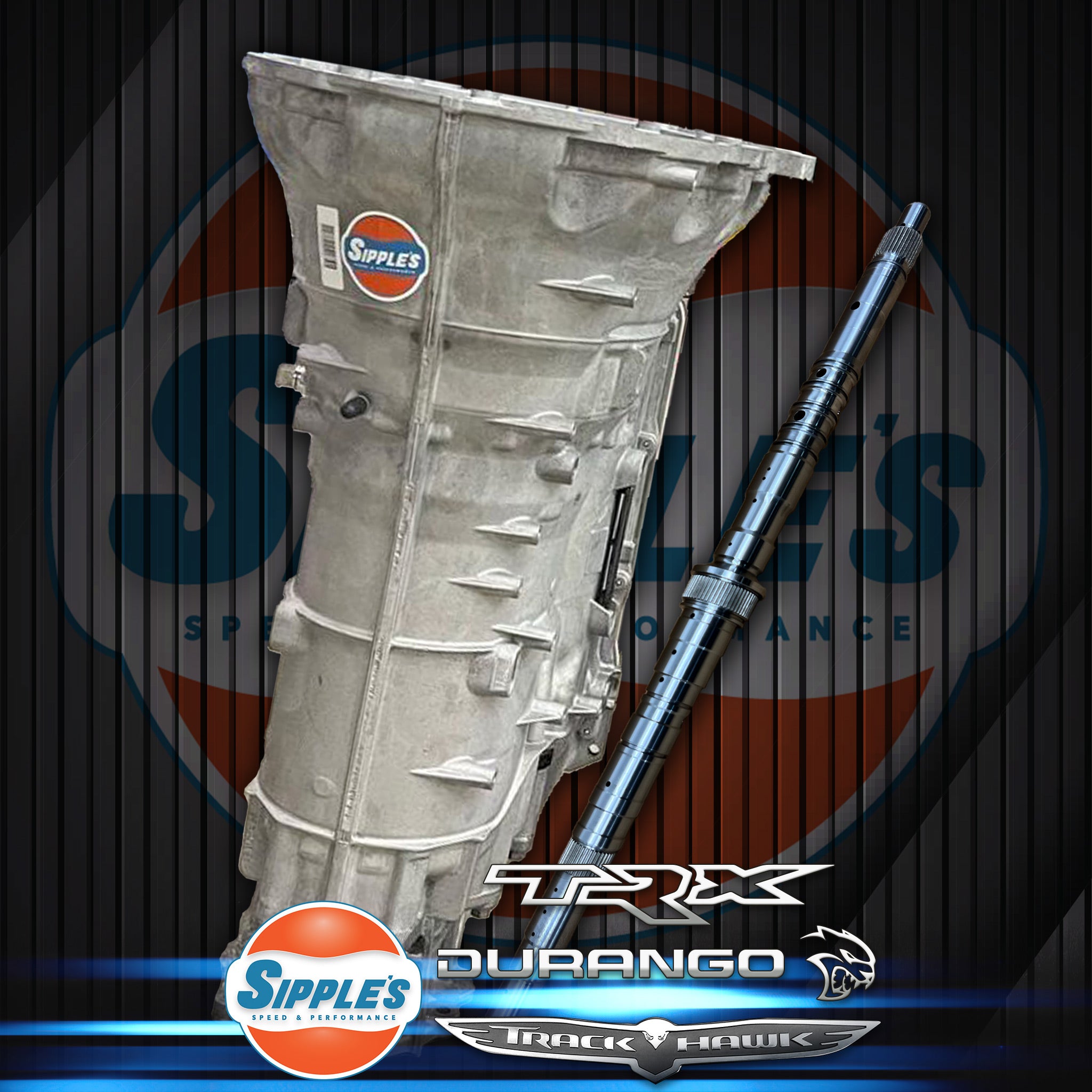

Billet Input Shaft
The billet input shaft is an add on to the Max Effort 8 speed. ($
1,895)
We recommend this option for the following:
HP70/75
over 1000 wheel
horsepower
HP90/95
over 1200 wheel horsepower
The billet input shaft is made with improvements over the OE shaft for oiling and fit. This input shaft is made of billet steel vs OE standard material.
The billet shaft has been tested to 2100 HP so far with zero stress wear.
Vehicles
2018+ Trackhawk
Hellcat Durango
TRX
Variations
AWD: Trackhawk/ Hellcat Durango
TRX: Different tail housing adapter
MAX EFFORT
8 Speed Torque Converter
Description
SSP Custom ZF 8 Speed Torque Converter
Specs
Billet stator
High performance frictions
Extra capacity
Performance bearing
tig welded
Vehicles
TRX
HC Durango
TrackHawk
Mounting Pad Options
Stock Mounting Pads
Billet Mounting Pads (+$500 | 2 Week Lead Time)
Billet Mounting Pad Option
As the power increases north of 1000 wheel HP the flexplate does just that, flexes to a point where the mounting flange on the factory converter cracks and breaks apart. This issue is becoming more common as these units age and power increases.
The billet mounting pad was developed to mitigate this issue. The factory mounting plate is removed and the billet pads are TIG welded into place and then the converter is balanced to ensure smooth operation. Existing billet stator converters can be sent in to have the billet pads installed. Please
email us
for details.
Stall Options
HP90/95 Stall Options:
2200
2600
3200
4000 (turbo applications)

المواصفات

• Billet E-drum
• Extra capacity performance frictions/steels
• (A,C,E,D)
• Upgraded stator bushing
• Upgraded rear bearing
• New seals & gaskets
• New pan filter
• New pump & chain
• Valve body recalibration
• Build new separator plate
• New pump bolts
• Proprietary modifications to input/output shafts
• New output shaft nut

التوافق

• RAM 1500 TRX 2021-2024 – HP95
• Dodge Challenger/Charger Hellcat / Redeye – HP90
• Dodge Durango SRT Hellcat – HP95
• Jeep Grand Cherokee Trackhawk – HP95

الخيارات المتاحة

• حالة القطعة القديمة (Core): Yes I have a core to send in.، No I don't have a core to send in.
• نوع عمود الإدخال: Stock Input Shaft، Billet Input Shaft (+1895)
• نوع قواعد التثبيت: Stock Mounting Pads، Billet Mounting Pads (+500)
