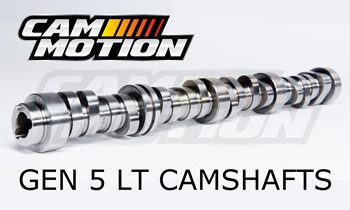

أعمدة كامات Gen 5 LT | Cam Motion – Gen 5 LT/CS 230/246 Centrifugal Supercharger Camshaft (230/246-116+4)

Product Description Grind Number: XA230/360-XA246/355-16+4 Hydraulic Roller Camshaft Aggressive Street or Street/Strip Performance Duration at .050″: 230/246 116 Lobe Center Angle with a 112 Intake Centerline Lift with 1.8 Rocker Arm Ratio: .648″/.639″ Recommended Displacement: 6.2 Liter Engines Cylinder Heads: Gen 5 LT Recommended Compression Ratio: 8.5-11:1 Recommended Headers: 1 3/4″ – 1 7/8″ Recommended Stall Converter: 2800-3200 Recommended Rear Axle Ratio: 3.23-4.10 NOTE: Requires use of Cam Motion VVT Phaser Lock Block The Gen 5 LT/CS 230/246 Centrifugal Supercharger Camshaft is designed for aggressive street performance in cars using 6.2 liter LT engines. The Gen 5 LT/CS 230/246 Centrifugal Supercharger Cam will have a defined lope to the idle and strong midrange to upper RPM power. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust and increased stall speed torque converter, high flow intake systems and increased rear axle ratios. If you are looking for an aggressive performance cam that you can daily drive or race at the track, this camshaft is a great choice. The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150 steel alloy camshaft cores. NOTE: This camshaft is designed to be used with the phaser locked, or our VVT Phaser Delete Kit. Failure to lock the phaser or use our VVT Phaser Delete Kit when using this camshaft can result in serious engine damage! For more information, contact Cam Motion technical support. NOTE: All Cam Motion Gen 5 LT camshafts require the deletion of the AFM/DOD function. This will require our AFM/DOD Delete Kit ( ) and modifications to the computer to disable this function. NOTE: Some Gen 5 LT camshafts are available in Cam Motion’s 3-bolt VVT-Delete design. Cam Motion’s optional gen 5 LT 3-bolt, VVT delete camshafts utilize a Gen 3/4 LS 4x 3-bolt upper timing gear along with either the LME VVT Delete front timing cover or the Katech VVT Delete front timing cover. NOTE: Cam Motion 3-bolt LT camshaft have a .306″ lift fuel pump lobe. It is the installers responsibility to make sure that the fuel pump is operating within its stroke range. Lash caps or pump shims may be necessary to achieve proper operation and avoid pump damage. Required Accessories: •AFM/DOD Delete Kit •Cam Motion .660″ lift Dual Valve Spring Kit •Cam Motion 5/16″ .080″ Wall Hardened Chromoly Pushrods •Cam Motion VVT Phaser Lock Block •Cam Motion VVT Spring Lock Tool
